The 40 ft chassis for sale is specially designed for the complex road conditions in Africa, which can well meet the needs of customers. TITAN girder gooseneck lower vertical plate reinforcement, gooseneck double-layer girder vertical plate. The deformation of the tri axle chassis for sale is very small when it is heavily loaded.

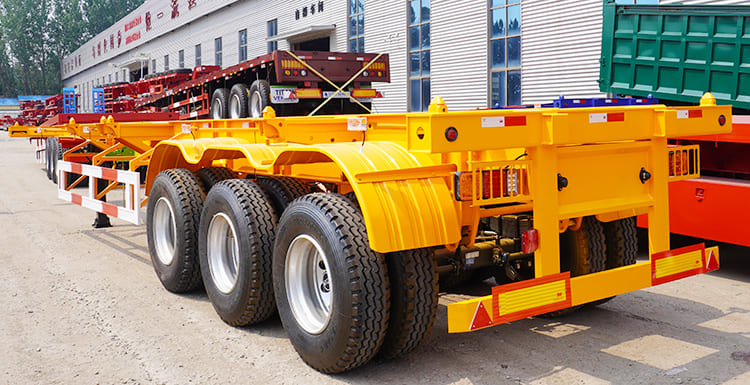

Tri Axle 40 Ft Container Chassis for Sale in Philippines
Tri Axle 40 Ft Container Chassis for Sale in Philippines
Tri Axle 40 Ft Container Chassis for Sale in Philippines
Tri Axle 40 Ft Container Chassis for Sale in Philippines
Dimension(mm): 12500x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle container chassis price
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Drawing of the Tri Axle 40 Ft Container Chassis for Sale
Video of Tri axle container chassis
Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
