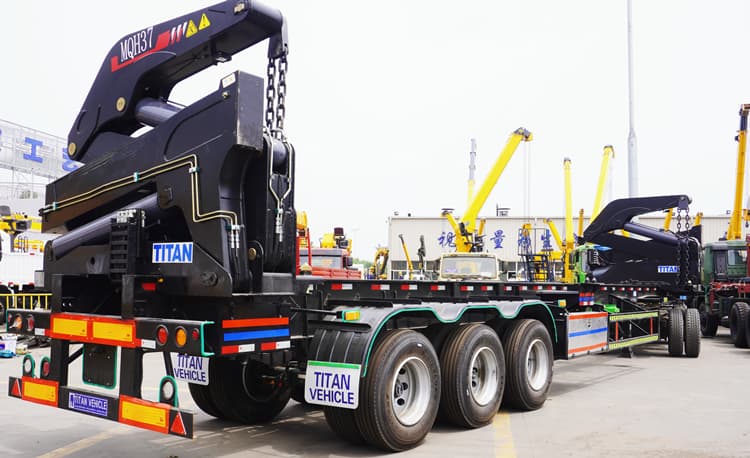

TITAN 40ft Trailer Lifter can be moved back and forth and can be used for standard 20ft and 40 ft containers.

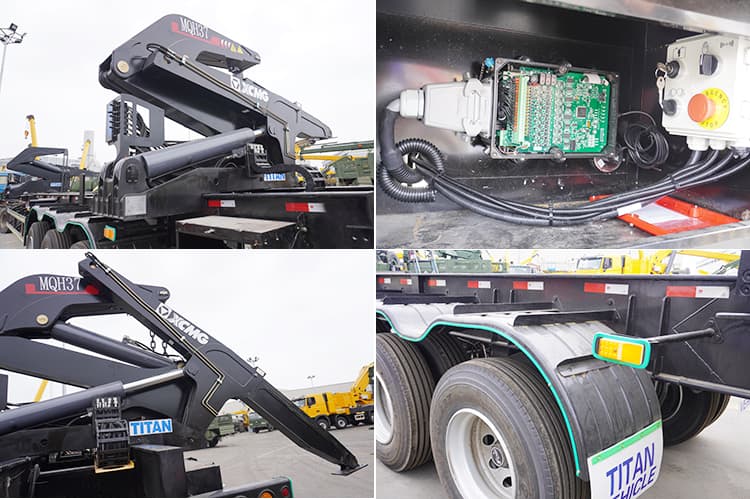

40ft Container loading trailer adopts wireless remote control system and is equipped with imported remote control, which is easy to operate and reliable in micro-movement. The manual operation mode remains. Equipped with imported solenoid valve, accurate control.
Trailer Lifter | Sideloader Trailer | Container Loading Trailer
Trailer Lifter | Sideloader Trailer | Container Loading Trailer
Trailer Lifter | Sideloader Trailer | Container Loading Trailer
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
TITAN has professional packaging solutions. In order to prevent the 40ft sideloader trailer from rusting in contact with water during transportation, TITAN will spray a layer of waterproof wax before packaging. At the same time, the trailer lifter will also be covered with a rain cloth to protect against bad weather.
At the same time, the rain cloth can also effectively prevent scratches and ensure that the trailer is in good condition when it is delivered to the customer.
Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
