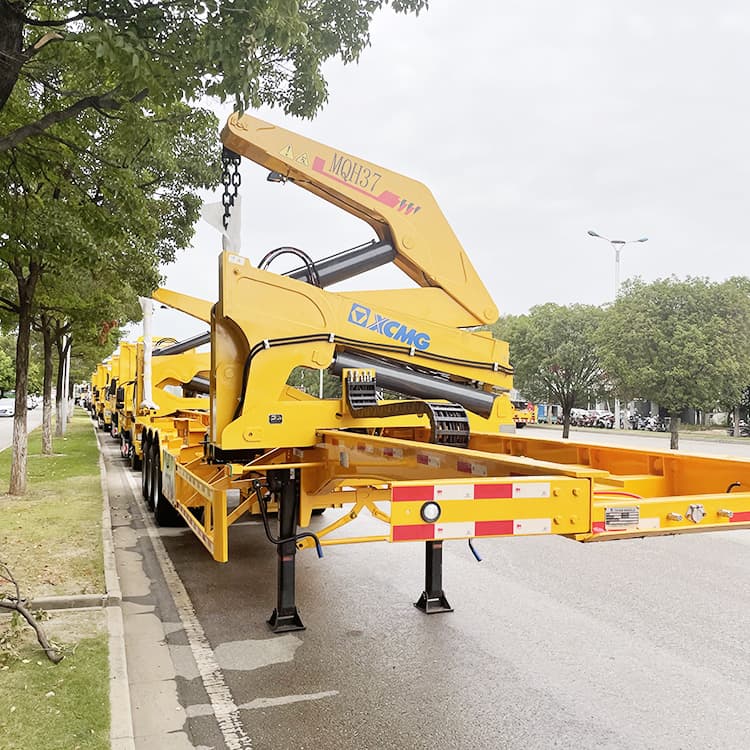

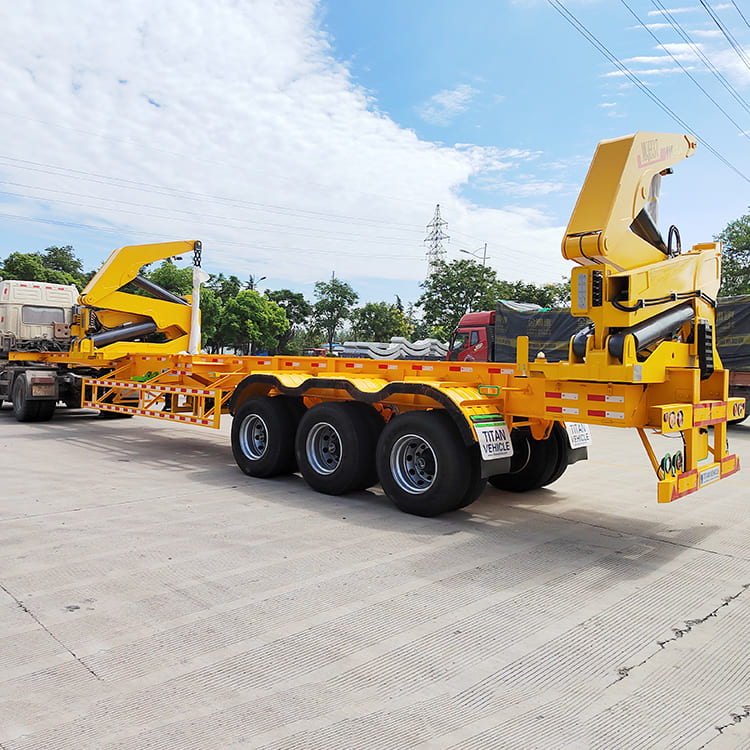

37 Ton 40Ft Sidelifter Trailer
37 Ton 40Ft Sidelifter Trailer

37 Ton 40Ft Sidelifter Trailer

67500 USD

TITAN 37 ton 40ft sidelifter trailer is mainly designed for transporting Containers, like 40ft container or two 20ft containers

SKU: 37 Ton 40Ft Sidelifter Trailer
GTIN: 06975766111014
MPN: TITAN6807102
Brand: TITAN VEHICLE

37 Ton 40Ft Sidelifter Trailer:

TITAN 37 ton 40ft sidelifter trailer  can  transferr containers to other trailers, trucks and trains, or to the ground, whether loaded or empty, our container side lifter makes it quick and easy to stack containers. Containers can be stacked 2 layers high, saving space and time. Nothing is more cost-effective or efficient than a container loader for sale.

TITAN 37 ton 40ft sidelifter trailer is mainly designed for transporting Containers, like 40ft container or two 20ft containers

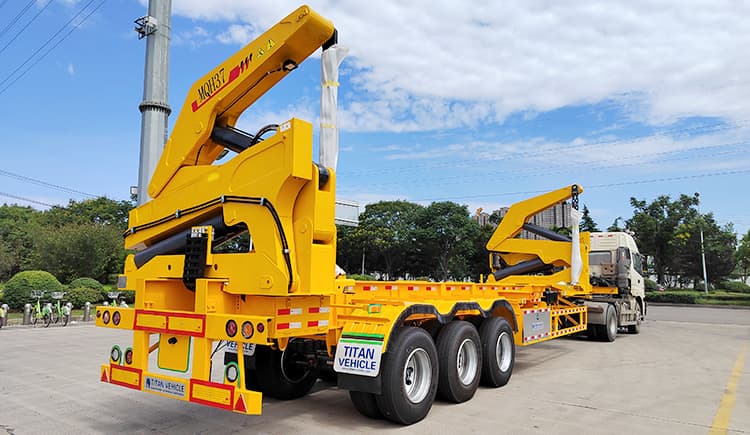

37 ton 40ft sidelifter trailer

Sidelifter Trailer | Container Side Lifter for Sale in Sierra Leone

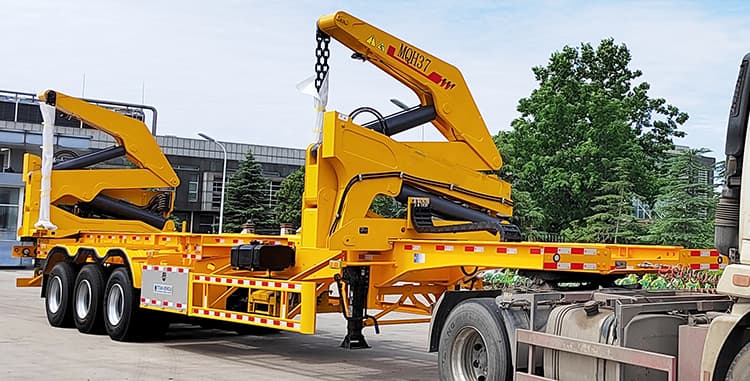

37 ton 40ft sidelifter trailer

Sidelifter Trailer | Container Side Lifter for Sale in Sierra Leone

37 ton 40ft sidelifter trailer

Sidelifter Trailer | Container Side Lifter for Sale in Sierra Leone



Sidelifter trailer Specification:

Max. lifting capacity: 37Ton

Max.stabilizer outreach: 3200mm

Max.working range: 4000mm

Overall height: 2500mm

Overall length: 1020mm

Max.pressure of hydraulic system: 28Mpa

Dimension(L*W*H): 14100*2500*4200mm

Axle: 3 axle* 13 ton (220mm brake pads)

Tire: 12 pcs, 12R22.5

Suspension: Heavy-duty type mechanical spring suspension

Kingpin: 3.5-inch bolted type

Braking system: WABCO Emergency valve

Landing gear: JOST

Tow Chain: lgus (imported)

Power source: Power take-off (equipped)

Hydraulic pump: Gear type Casappa Italy

Direction control valves: AMCA Holand

Remote Control: NBB Germany

Package of the Sidelifter trailer

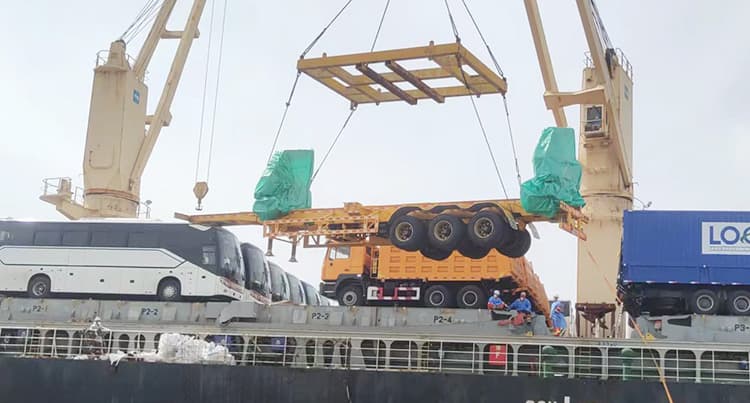

TITAN has professional packaging solutions. In order to prevent the  container side lifter trailer from rusting in contact with water during transportation, TITAN will spray a layer of waterproof wax before packaging. At the same time, the  37 ton container side lifter trailer  will also be covered with a rain cloth to protect against bad weather.

At the same time, the rain cloth can also effectively prevent scratches and ensure that the trailer is in good condition when it is delivered to the customer.

37 ton 40ft sidelifter trailer



Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.

40ft container sidelifter trailer
