3 Line 6 Axle 100 Ton Lowbeds Trailer

3 Line 6 Axle 100 Ton Lowbeds Trailer

17000 USD

Price Reference Only.



TITAN 3 line 6 axle 100 ton lowbeds trailer can transport 120T equipments, it usually used to transport heavy cargo.

SKU: 3 Line 6 Axle 100 Ton Lowbeds Trailer
GTIN: 06975766110505
MPN: TITAN6815078
Brand: TITAN

3 Line 6 Axle 100 Ton Lowbeds Trailer Description:

TITAN 3 line 6 axle 100 ton lowbeds trailer use high strength steel material to ensure the capacity, the load can be up to 120 to 150 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

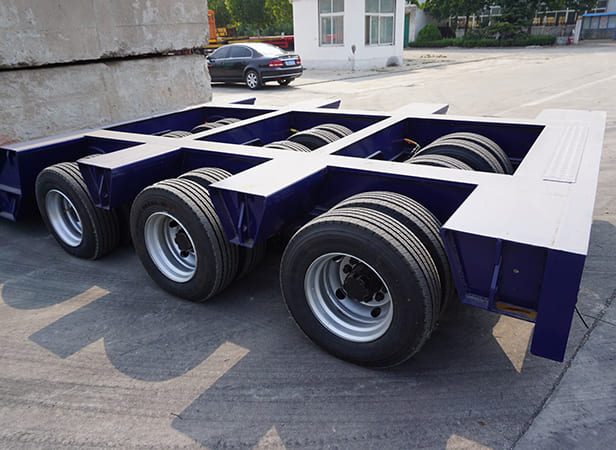

3 line 6 axle 100 ton lowbeds trailer

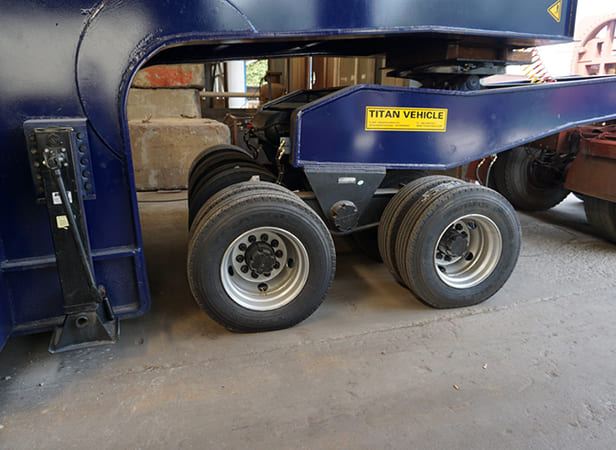

3 line 6 axle 100 ton lowbeds trailer

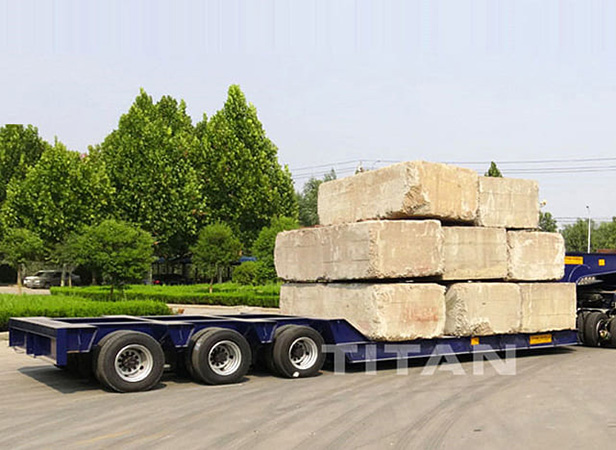

3 line 6 axle 100 ton lowbeds trailer

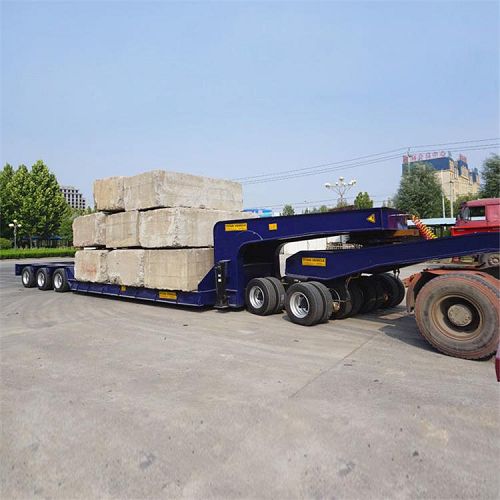

3 line 6 axle 100 ton lowbeds trailer

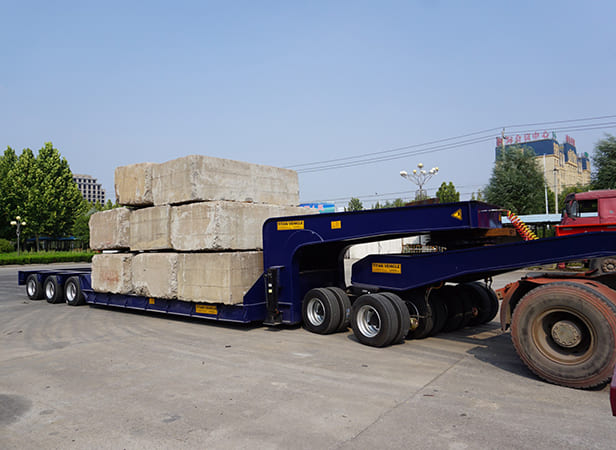

3 line 6 axle 100 ton lowbeds trailer



3 Line 6 Axle 100 Ton Lowbeds Trailer Specification:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 120-150T

Axle: 3 line 6 axle, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)



3 Line 6 Axle 100 Ton Lowbeds Trailer Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.



3 line 6 axle 100 ton lowbeds trailer details diaplay video



120 Ton Lowbed Trailer with Dolly



Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.





Please click "TITAN Lowbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
