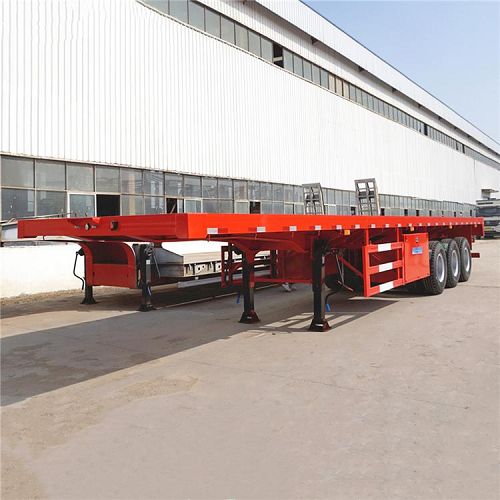

40 Ft Flatbed Trailer

40 Ft Flatbed Trailer

9700 USD

Different Parameters, Different Price. Price Reference Only.



3 axles 40 foot flatbed trailer is the most popular model. TITAN can also offer 2/3/4 axle, 20/40/45/48 ft flat bed trailer, the capacity from 40 to 80 tons.

SKU: 3 Axles 40 Foot Flatbed Trailer
GTIN: 06975766110239
MPN: TITAN6815066
Brand: TITAN VEHICLE

3 Axles 40 Foot Flatbed Trailer Description:

3 axles 40 foot flatbed trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.

Each 3 axles 40 foot flatbed trailer comes with its own load rating, size, other systems as would be needed for its use. These specifications are very useful in helping you buy the right 30 tonne flat bed trailer for your operations.

3 axles 40 foot flatbed trailer

3 axles 40 foot flatbed trailer

3 axles 40 foot flatbed trailer

3 axles 40 foot flatbed trailer

3 axles 40 foot flatbed trailer



3 Axles 40 Foot Flatbed Trailer Specification:

Model: 3 axles 40 foot flatbed trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



3 Axles 40 Foot Flatbed Trailer Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stability and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.
