3 Axles 55 Ton Lowboy Gooseneck Trailer

3 Axles 55 Ton Lowboy Gooseneck Trailer

32000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN 3 axles 55 ton lowboy gooseneck trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs.



SKU: 3 Axles 55 Ton Lowboy Gooseneck Trailer
GTIN: 06975766110468
MPN: TITAN6815065
Brand: TITAN VEHICLE

3 Axles 55 Ton Lowboy Gooseneck Trailer Description:

Our 3 axles 55 ton lowboy gooseneck trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit, 11 pairs of D-rings, 2 inch nominal air-drying white oak floor, 3rd air lift axis (only 3-axis air slide device) and manual slide height multiplier (only air slide device).



 3 axles 55 ton lowboy gooseneck trailer

 3 axles 55 ton lowboy gooseneck trailer

 3 axles 55 ton lowboy gooseneck trailer

 3 axles 55 ton lowboy gooseneck trailer

 3 axles 55 ton lowboy gooseneck trailer

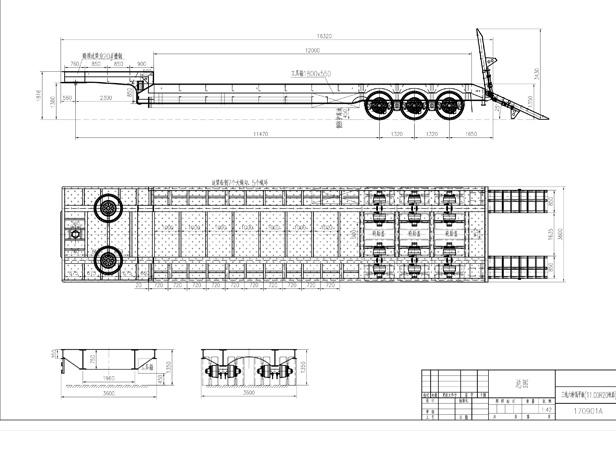

3 axles 6 lines gooseneck lowboy



3 Axles 55 Ton Lowboy Gooseneck Trailer  Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



3 Line 6 Axle Lowboy Gooseneck Trailer details display video

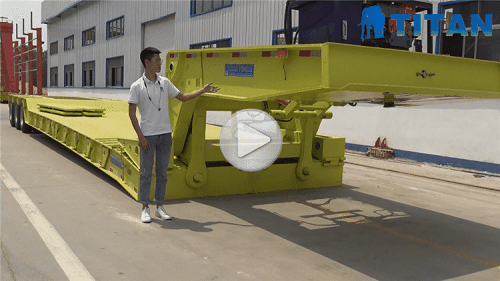

3 Line 6 Axle 150 Ton Lowboy Trailer

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click " TITAN Lowboy Trailer" to get the detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
