Wind Blade Trailer

Affordable wind blade trailer , wind blade trailer for sale , blade trailer for sale, custom wind turbine blades transporting plans, solutions and ideas from 2021 best semi trailer manufacturer - TITAN.
Affordable windmill trailer , windmill blade trailer , windmill trailer for sale, custom wind turbine blades transporting plans, solutions and ideas from 2021 best semi trailer manufacturer - TITAN.
Different types of wind turbine trailer , wind turbine trailer for sale , adapter for blade , windmill blade adapter for sale at cost price, customized wind turbine trailers from TITAN manufacturer.
TITAN produces 64 M Extendable Modular Trailer, Extendible Semi Trailer, 64M Windmill Turbine Blade Trailer, Modular Trailer for Carrying 76 meters to 90 meters Wind Blade

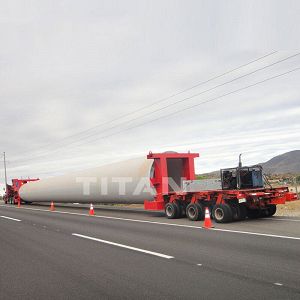

TITAN Wind Tower Adaptor for hauling wind tower for sale price
Wind Turbine Tower Transport for sale price
3 lines 6 axles Wind Tower Adapter Trailer, transporting large blades of model 121-156, length 59.5-76 meters, maximum 80 meters. windmill blade transport can be transported safely and efficiently in wooded or built-up areas, in the mountainous areas in n
Affordable windmill blade trailer , windmill trailer , windmill blade transport, custom wind turbine blades transporting plans, solutions and ideas from 2021 best semi trailer manufacturer - TITAN.
TITAN mainly produced different types of windmill blade trailer , 3 line 6 axle windmill blade trailer for sale , windmill blade transport trailer for sale at cost price, with parameters 3 line 6 axle, 52m, 56m, 62m, 64m.
  • 1/1

All the products are customized to meet your requirement! And we are doing a special promotion of spot trailers. You can click here to watch videos of the wind blade trailer!

wind blade trailer video



Specification of the wind blade trailer:

Brand: TITAN Adapter wind blade trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles/4 lines 8 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Brand: Extendable wind blade trailer

Dimension: 12500mm →25000mm-44000mm→55000mm (customized)

                       (Size can be tailored to suit individual needs.)

Loading capacity: 60-80 T

Axles:3/4/6axles

Suspension:Heavy duty mechanical suspension

Tire:12/16/24 units

King pin:90#

Landing gear:JOST

Brake system : WABCO

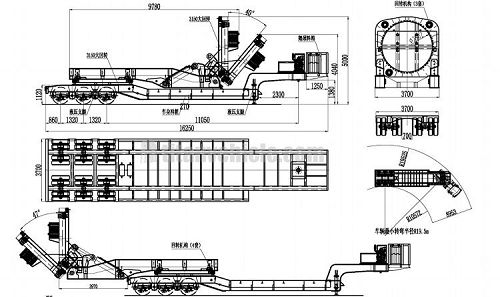

drawing of the wind blade trailer

Drawing of the wind blade trailer with adapter

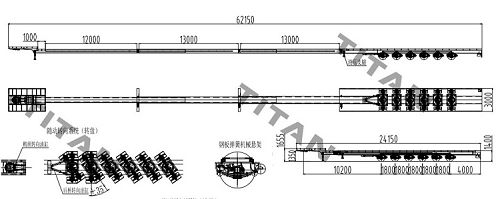

extendable wind blade trailer

6 axle extendable wind blade trailer



Wind blade trailers include ordinary wind blade trailer, axial wind blade trailers, and lifting wind blade trailers.

1. Ordinary extendable wind blade trailers are a bit similar to lowbed transport trailer vehicle, but the girder adopts a buckle box design, and the girder is drawn to adjust the length of the vehicle to adapt to the transportation of vanes of different lengths.

2. The big difference between the axial wind blade trailer and the ordinary extendable wind blade trailer is that the chassis adopts a hydraulic axis design, so that the vane truck has a lower cargo deck and more flexible steering.

3. Lifting wind blade trailer refers to a wind blade trailer transport vehicle equipped with a hydraulic lifting device, which is mainly aimed at the transportation of blades in mountainous areas. In the case of flat roads, the blades are transported flat. In the case of extremely small turning radius in mountainous areas, the lifting device is used to raise the height of the transported items (usually 5-10 meters), and shorten the length of the vehicle to bypass obstacles.
