The telescopic trailer for windmill blade transport could have three and four telescoping beams, and it could reach Max.62m length. the maximum can transport windmill blades within 80 meters. At the closed length of the telescopic trailer, it could use as a flatbed trailer.
The suspension of the telescopic trailer adopts mechanical suspension, the mechanical suspension can accept overload. it could be air suspension and mechanical suspension. the air suspension is the balance ability cause it has automatic lifting distance.
The Telescopic Trailer for Windmill Blade could have three steering modes. One is Automatic steering ( at short length), one is Remote control steering and the last one is the Manual operation steering.
For the windmill blade transporters, not only the Extendable flatbed trailer, but also we have extendable hydraulic modular trailer, Windmill blade adapter, and Windmill Tower Adapter.
6 axle 62m Telescopic Trailer for sale

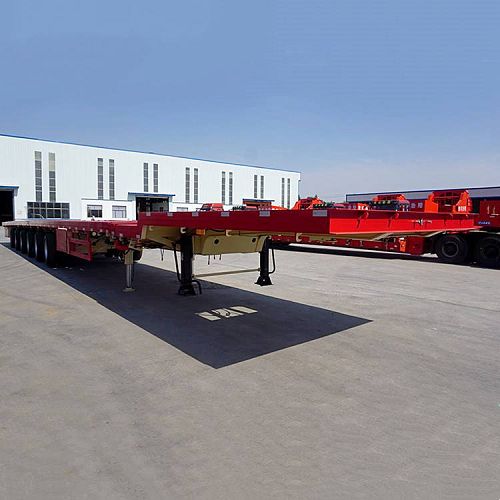

Telescopic Trailer for Windmill Blade Transport
wind turbine blades for sale
Windmill Blade Transport Telescopic Trailer drawing
Brand: TITAN 62m Telescopic Trailer for Windmill Blade Transport
Closed length: 24150mmX3000mmX 1650mm
Total length: 62,000mm after extension
Transport: 80m windmill blade
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 6 axle
Suspension: Hydraulic suspension
Tire: 24 units
Braking system: WABCO emergency valve
Kingpin: 3.5 inch
Landing gear: JOST C200
62m Telescopic Trailer for Windmill Blade Transport details display video

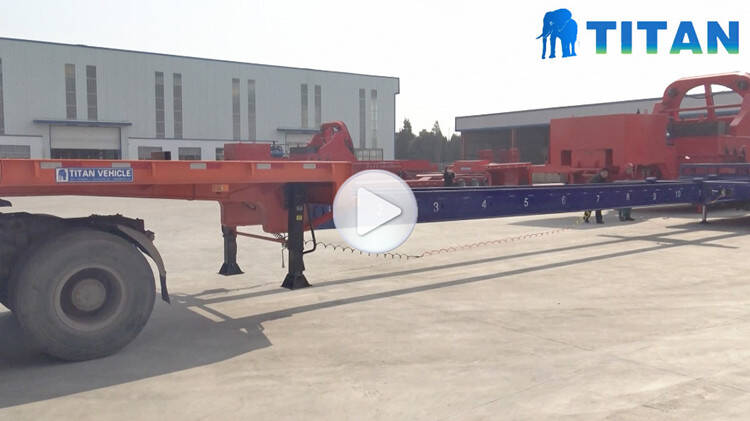

wind blad trailer testing
