For transporting extremly heavy and long windmill turbine blade - Wind Turbine Blade Trailer from TITAN is the ideal solution, with single to triple extendable decks and a loading length of up to 56 meters.
TITAN Wind Turbine Blade Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.TITAN Wind Turbine Blade Trailer are noted for their highly robust frames and outstanding stability of the extension beam. the high standard of the workmanship and welding process ensures easy adjustment of the extension beams TITAN Wind Turbine Blade Trailer can be adjusted to fit any size or band of Turbine Blade.
TITAN can provide you the customize wind blade trailer to meet your transport requirements.

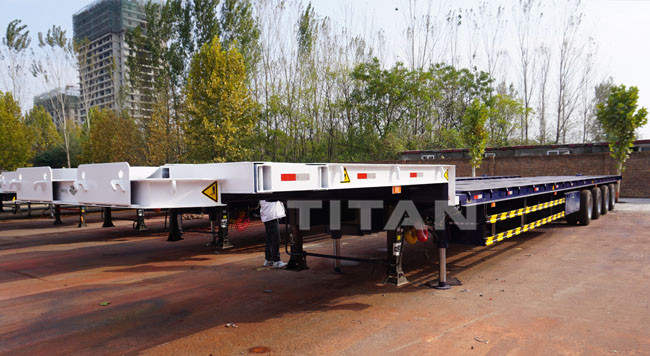

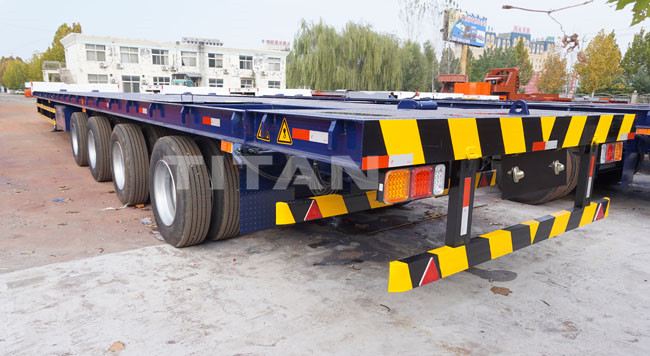

Extendable wind blade trailer for blade transportation

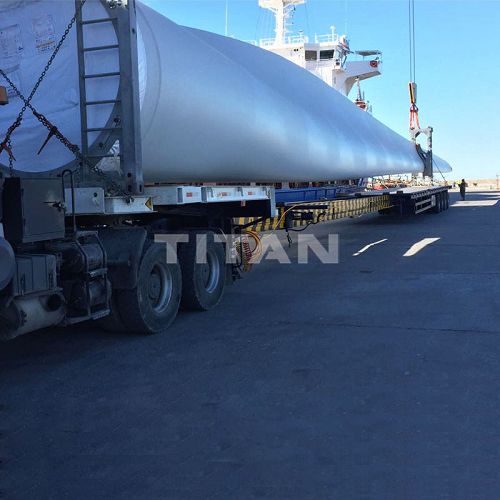

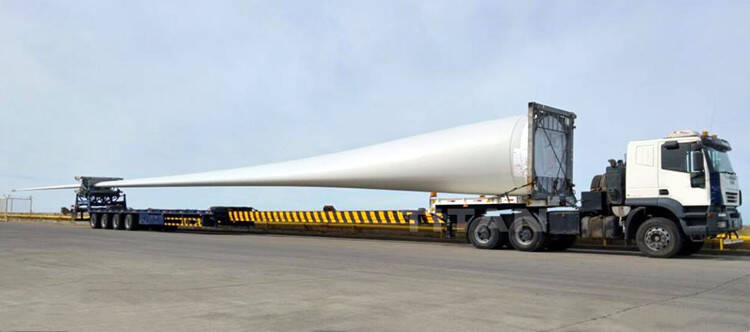

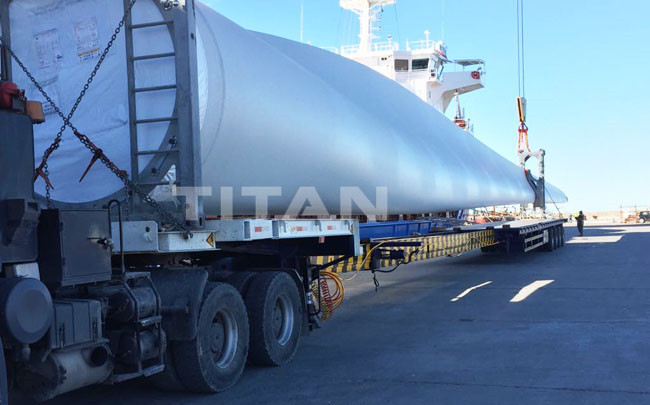

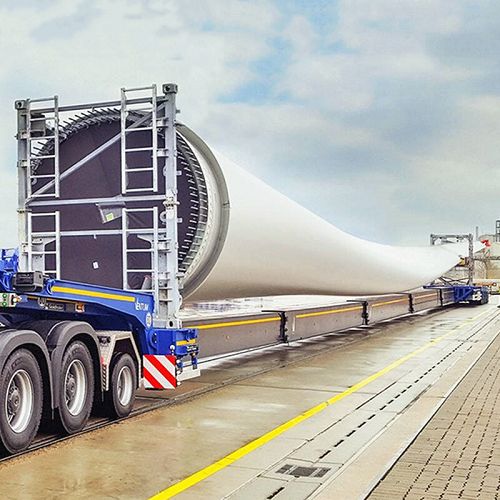

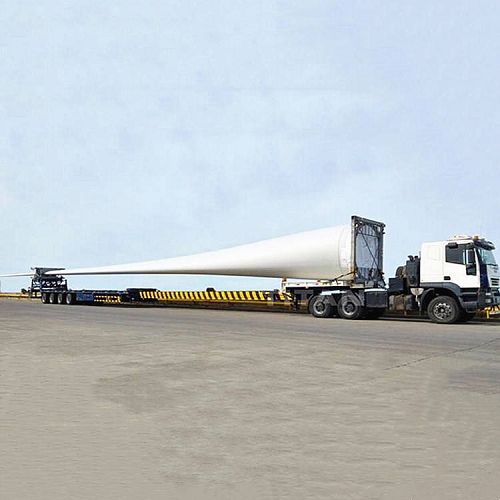

TITAN 56 meters Wind Turbine Blade Trailer
TITAN 56 meters Wind Turbine Blade Trailer
1.Trailer's length from 21. meters extend to 56 meters
2.Transport the 45 meters to 80 meters Windmill Turbine Blade.
3.Loading capacity is up to 60 ton
4.Steerable axles, all wheels steering.
5.Highly robust frames and outstanding stability of extension beam.
6.Mechanical spring suspension, air suspension or hydraulic suspension is an option
7.Manual valve operation and wireless remote control.
Brand: TITAN Wind Turbine Blade Trailer

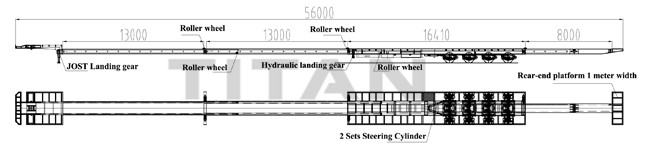

Dimension: 21,500mmX3000mmX1350mm
Total length: 56,000mm after extension
Loading capacity: 60 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 4 units steering axle
Suspension: Mechanical spring suspension.
Tyre: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200

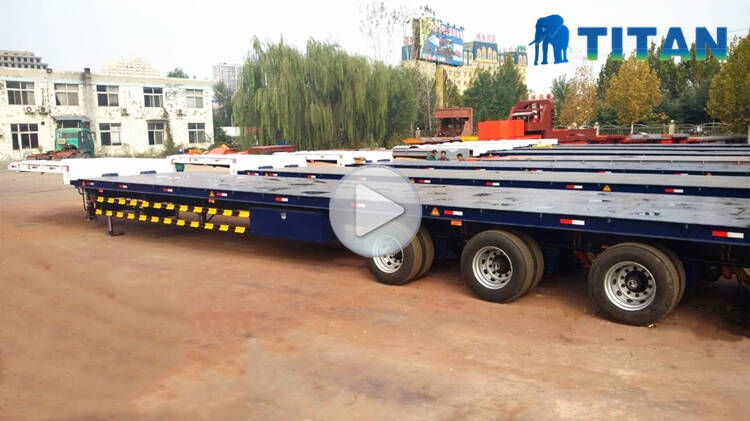

56m Extendable Wind Blade Trailer details display video
