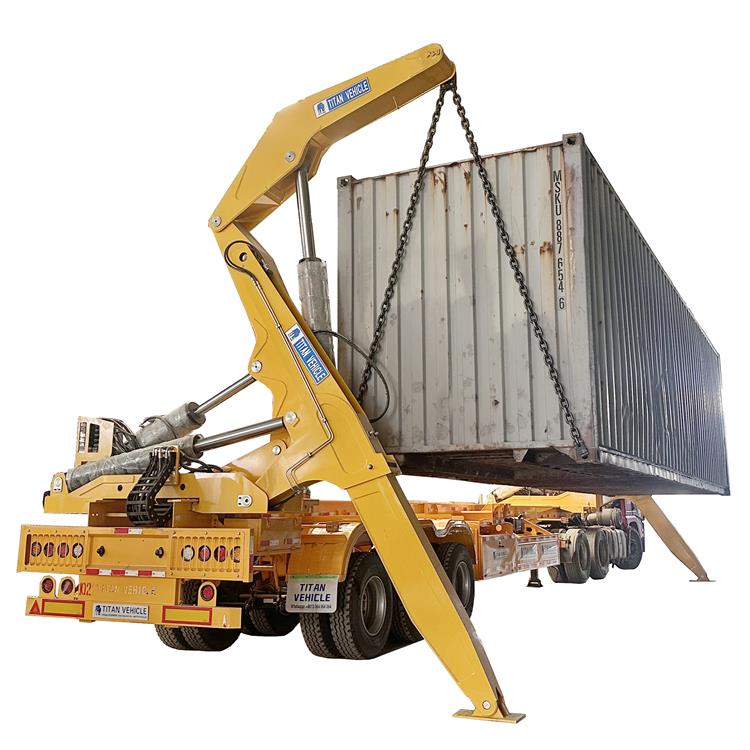

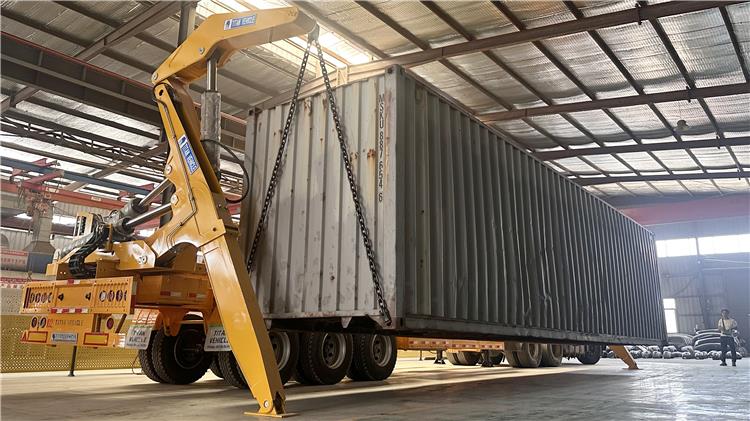

The container side loader trailer is a specialized semi-trailer designed for container loading, unloading, and short-distance transfer. Equipped with a hydraulic side-loading system, it can independently lift, load, unload, and transport containers without relying on port cranes or forklifts, making it particularly suitable for use at ports, logistics parks, factories, warehouses, and construction sites.
Container side loader trailers are primarily used for the transport, loading, and unloading of 20ft and 40ft containers. They are widely utilized in port logistics, container transport, factory raw material delivery, warehousing and distribution, and construction projects. In areas with limited infrastructure or a lack of dedicated lifting equipment, these trailers significantly enhance operational flexibility and efficiency.

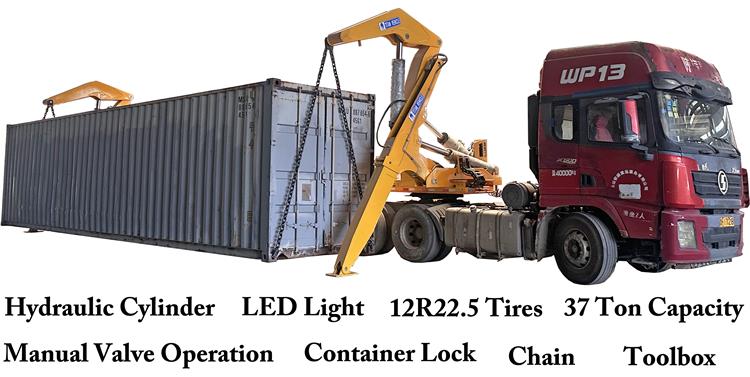

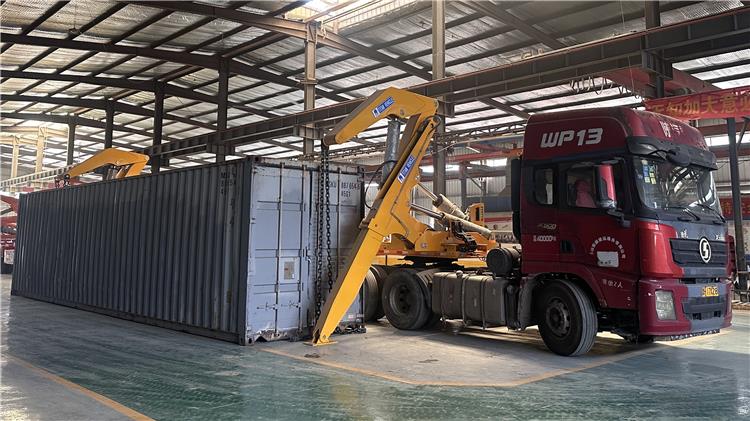

40 foot Container Side Loader Trailer for Sale In Guyana
40 foot Container Side Loader Trailer for Sale In Guyana
40 foot Container Side Loader Trailer for Sale In Guyana
40 foot Container Side Loader Trailer for Sale In Guyana
40 foot Container Side Loader Trailer for Sale In Guyana
Loading capacity: 45 Ton
Load: 20 ft and 40 ft container
Power source: Diesel engine
Remote control: 1 unit
Chains: 2 chains+4 hooks

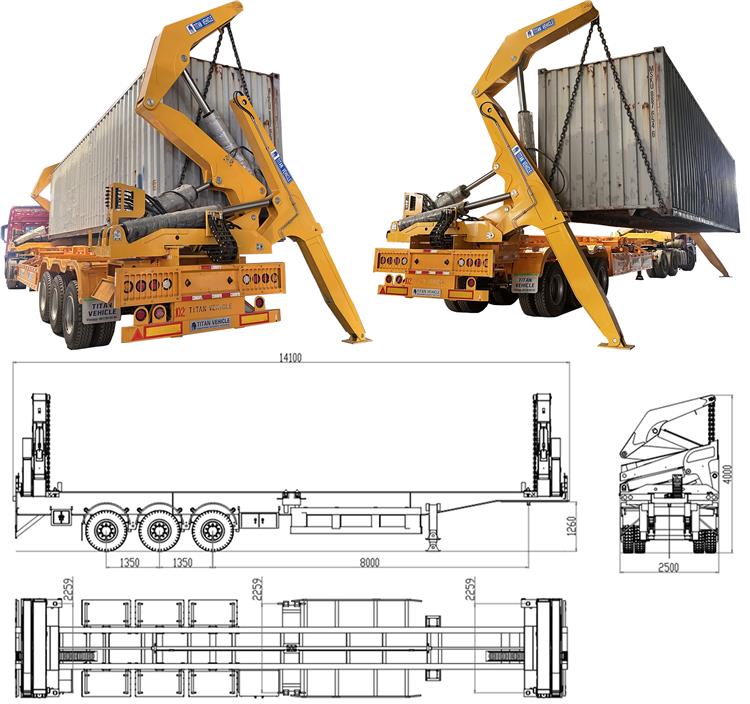

Dimension: 14100*2500*4200mm
Axles: 3 axle*13 ton;16 tons brake lining
Tires: 12 pcs,12R22.5

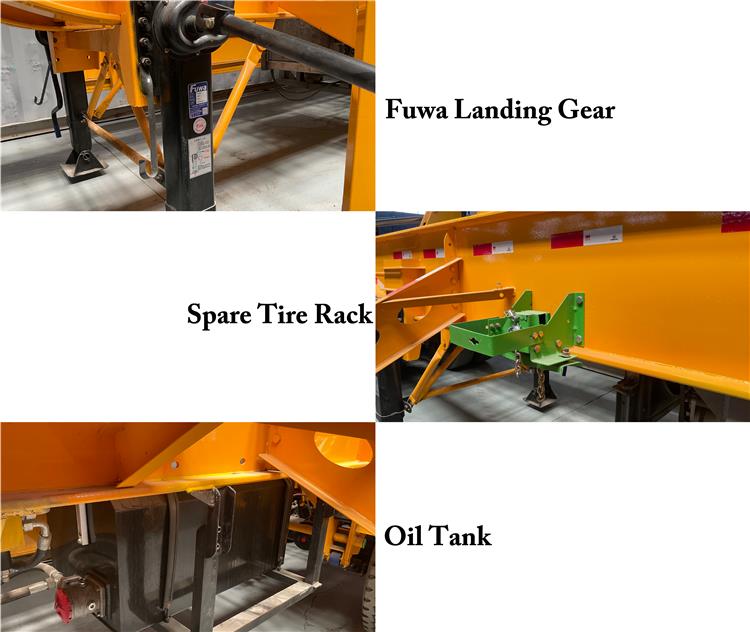

Landing gear: FUWA
Braking system: WABCO Emergency valve

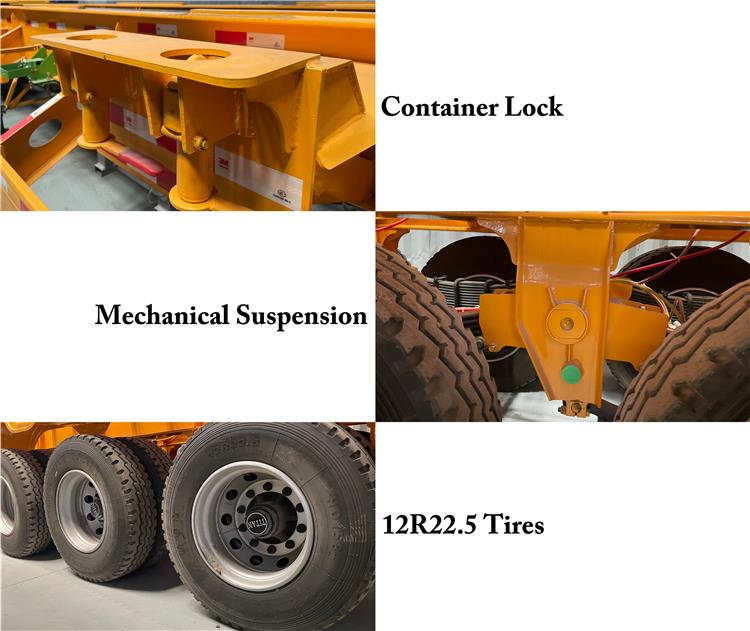

Suspension: Mechanical Suspension
Kingpin: 2 inch and 3.5 inch

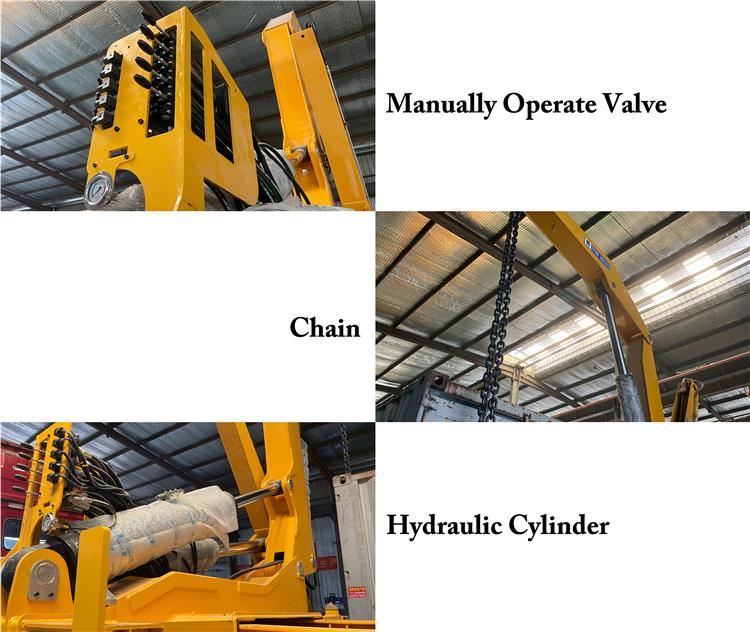

Container side loader trailers typically feature a high-strength steel frame, hydraulic support legs, hydraulic lifting arms, and container locking mechanisms; some models are equipped with an independent power unit (such as a PTO or diesel engine) to drive the hydraulic system. Depending on specific requirements, they can be configured to accommodate 20ft or 40ft containers and feature various hydraulic lifting capacities and axle configurations to suit different container weights and road transport conditions.
Key features of the 40ft container side loader trailer include high loading and unloading efficiency, operational flexibility, and excellent safety, enabling an integrated solution for both transport and handling. Upon arrival at the work site, the trailer uses its own hydraulic system to load and unload containers without the need for external cranes, thereby reducing equipment rental and labor costs. Its multi-axle design and high-strength main beam ensure superior load-bearing capacity and stability, making it suitable for long-distance highway transport and complex operating environments.
The primary advantage of the 40ft container side loader trailer is its combination of container transport with autonomous loading and unloading capabilities. It is particularly well-suited for ports, logistics operations, factories, and work sites lacking fixed lifting equipment; it enhances container turnover efficiency, lowers overall transport costs, and improves the vehicle's adaptability across diverse working environments.
The 40 foot container side loader trailer is particularly well-suited for space-constrained environments. While traditional lifting equipment typically requires significant operating space, the side-loading system operates primarily from the side of the vehicle, allowing for container handling at warehouses, factories, construction sites, and along narrow roads. This equipment enhances vehicle utilization and overall transport efficiency.
