The extendable flatbed trailer features main beams made of high-strength steel (such as HG60) and a multi-axle design (3- or 4-axle). Even when fully loaded and extended to 24 meters, the main beams show no sagging or deformation, ensuring operational safety.
The 24-meter extendable flatbed trailer is the “main transportation solution” for ultra-long, lightweight, but space-consuming cargo. extendable flatbed trailer can provide an ideal supporting span, preventing cargo from breaking during transportation due to excessive overhang at both ends.
extendable flatbed trailer can transport multiple extra-long steel pipes in one trip, greatly improving logistics efficiency and reducing project construction periods. It is widely used for transporting various specifications of H-beams, I-beams, rails, and extra-long steel coils.

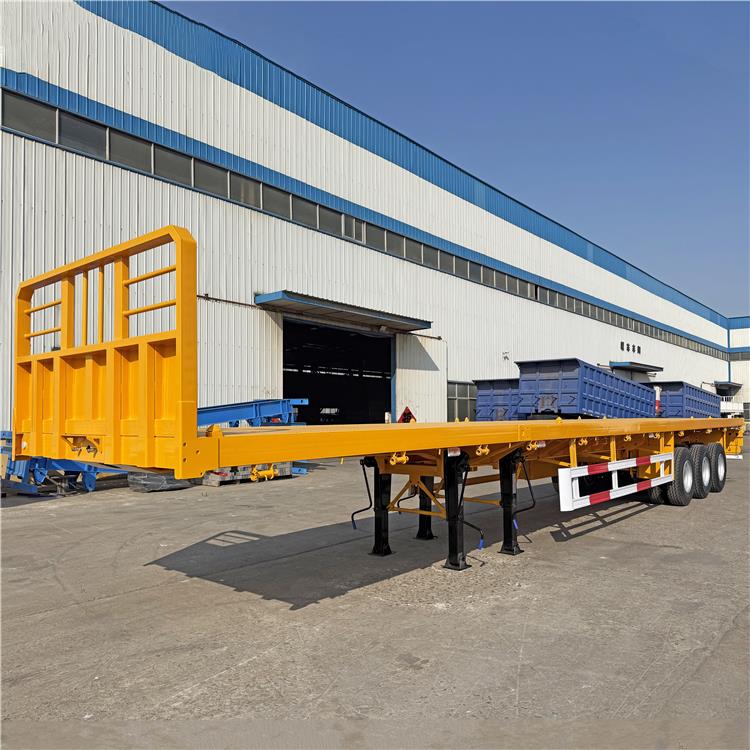

24m Extendable Flatbed Trailer for Sale In Guyana

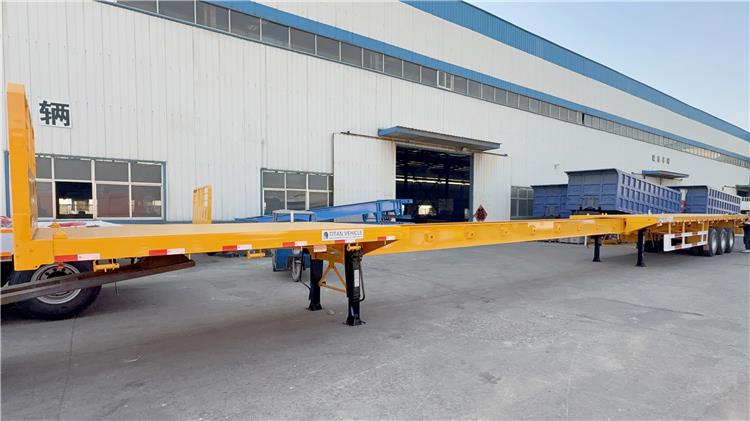

24m Extendable Flatbed Trailer for Sale In Guyana

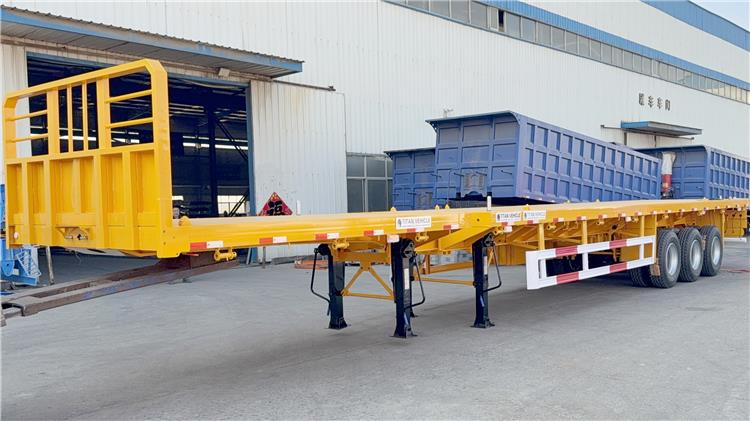

24m Extendable Flatbed Trailer for Sale In Guyana

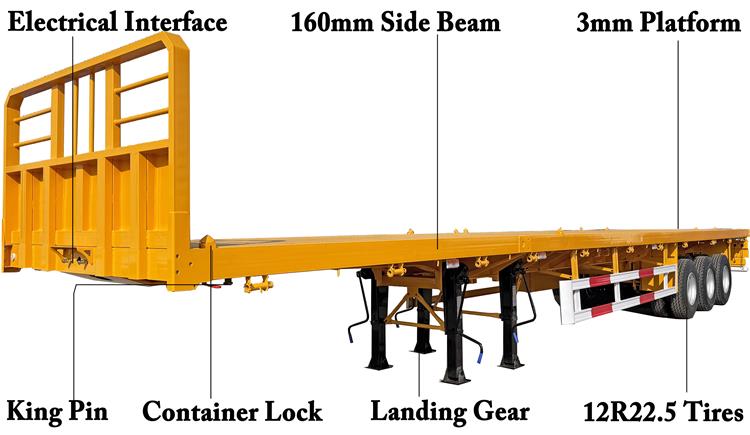

Transport: long rails, pipes, 20/40ft container

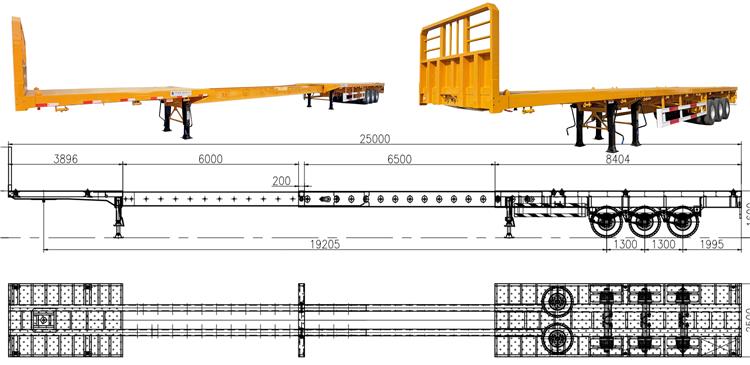

Extend: 12.5m to 24m
Floor: 3 mm anti slip plate
Axles: 3 axles
Suspension: Mechanical spring suspension
Tire: 12pcs
Kingpin: 2" (50#) or 3.5"(90#) high tensile steel bolted type
Landing gear: JOST
Brake system: WABCO
extendable flatbed trailer is an indispensable tool in special transportation and heavy industrial logistics. When extendable flatbed trailer is in the retracted condition, it functions as a standard flatbed trailer, making it convenient for flexible driving and turning in urban areas or narrow roads. It also provides better fuel efficiency when running empty. When transporting ultra-long cargo, through the telescopic beam design, extendable flatbed trailer can be extended to 24 meters or even longer, eliminating the cost of purchasing multiple trailers with different lengths.
Load Capacity and Structural Strength of extendable flatbed trailer
The high-strength steel main beam of extendable flatbed trailer and the telescopic beam must withstand extremely high bending stress after extension. extendable flatbed trailer is usually manufactured by welding high-strength steel such as HG60 or Q345, ensuring that the main beam does not experience permanent sagging (bending deformation) under extreme extension conditions.
To ensure smooth turning after extension and better axle load distribution, this type of trailer is usually equipped with 3 axles, 4 axles, or even multi-axle designs. High-end versions can also be equipped with Hydraulic Steering or self-steering axles, greatly reducing the turning radius and protecting tires from severe wear.
The air brake pipelines and electrical wiring of extendable flatbed trailer are completely hidden inside the telescopic beam and equipped with special protective drag chains. When the main beam extends or retracts, the pipelines automatically extend or retract accordingly, preventing wear and wire breakage.
