120 Ton Folding Neck Lowboy Trailer

120 Ton Folding Neck Lowboy Trailer

27000 USD

The main purpose of 120 ton folding neck lowboy trailer is the transportation of heavy self-propelled equipment.

SKU: 120 Ton Folding Neck Lowboy Trailer
GTIN:
MPN: TITAN6808105
Brand: TITAN VEHICLE

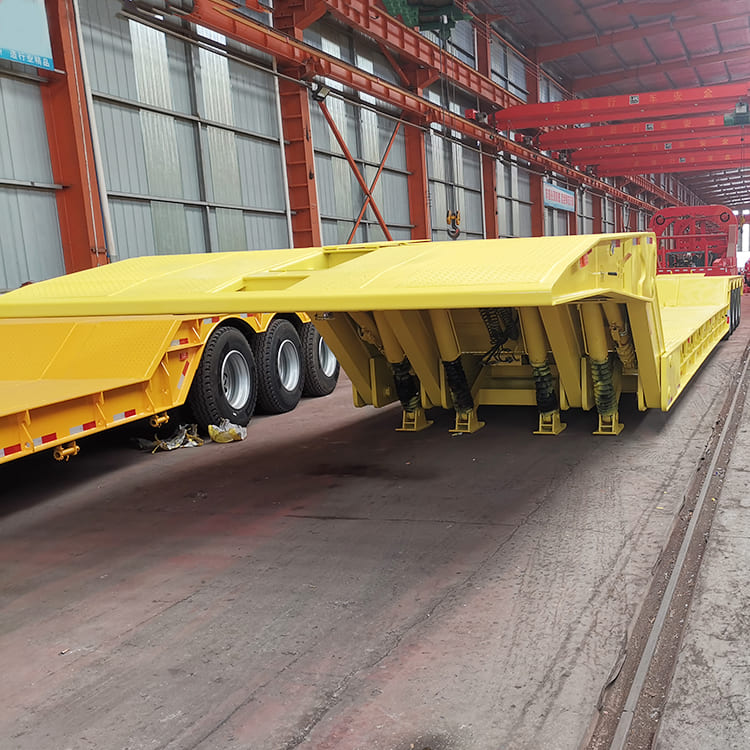

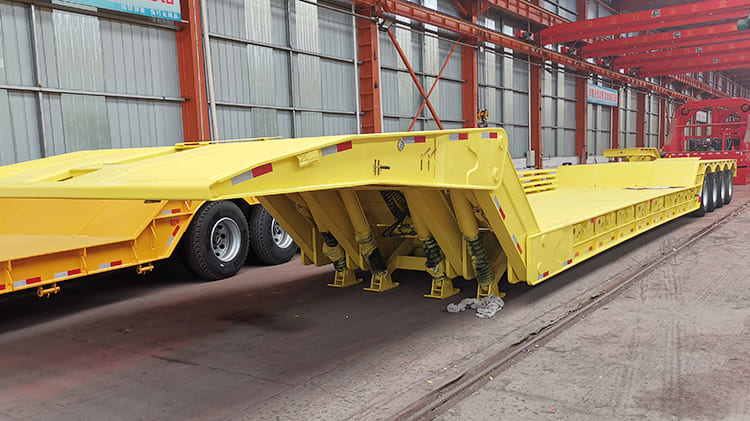

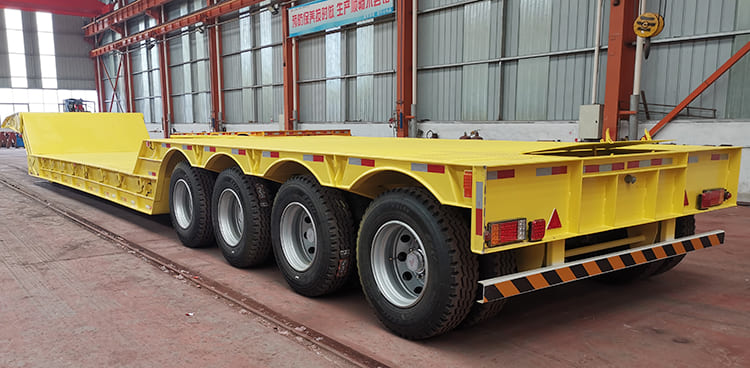

120 Ton Folding Neck Lowboy Trailer:

 120 ton folding neck lowboy trailer consist of a low bed with multiple wheels at the rear and a gooseneck fixed at the front and are mainly used for transporting heavy machinery etc. This folding neck lowboy trailers for sale has a foldable gooseneck for flexible height adjustment of the cargo bed.

TITAN is using the high strength steel to make the main beam of the folding neck lowboy trailer, which make the folding neck trailer more durable.

120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer

120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer

120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer

120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer

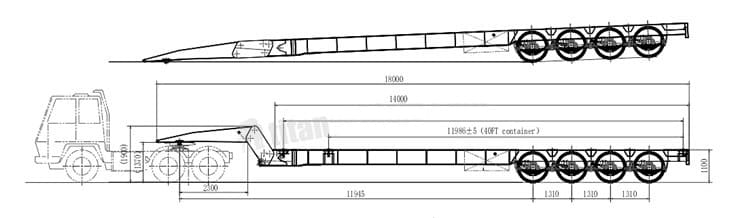

Folding Neck Lowboy Trailer Specification:

Dimension: 18000mm x 3800mm x 1800mm

Working platform: 14000*3800MM

Loading capacity: 100 TONS.4 AXLES,16TONS.

Gooseneck: hydraulic folding gooseneck.

Side hook for chain or belt

Checkered plate with 20 mm squre bar on ramps

Twist locks :6 units for 40/45 ft container

Axle: 4 Axle

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer

120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer

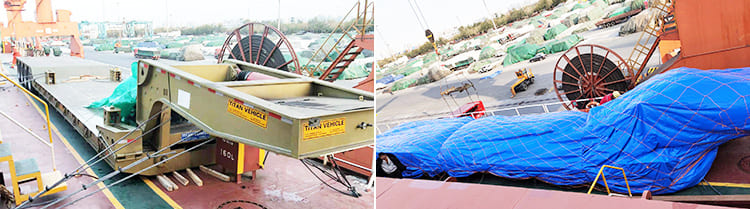

TITAN Shippment of other folding neck lowboy:

TITAN uses bulk or containerized transportation to package goods.  After the customer chooses the method of bulk cargo transportation, TITAN will spray waterproof wax on the surface of the folding neck lowboy for sale  to protect the folding neck lowboy trailer and prevent the folding neck lowboy for sale from rusting after being soaked in rainwater during transportation. At the same time, TITAN will also wrap the  folding neck trailer. Rain cloth, which can not only prevent the  body from being soaked by rain, but also prevent the trailer from being scratched during transportation.



120 Ton Folding Neck Lowboy Trailers for Sale | Folding Neck Trailer



Video of Folding Neck Trailer
