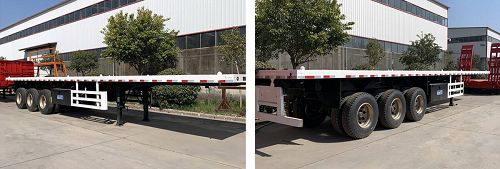

Produced in January 2020. The flatbed semi trailer is in stock at the factory, we can repaint the color for you according to your needs.
| Tare Weight: About 7.1T | Twist Locks: 12 sets |
| Dimension(mm): 12500*2500*1530 | Axles: 13 T Axle 16T braking system, TITAN Brand , 3 units |
| Loading capacity(ton): ≤80T | Tire: 12R22.5, 12 units |
| Material: Q345 steel | Rim: 9.00*22.5, 12units |
| Main beam height: 500mm 14mm x8 mm x16 mm | Side beam: 16mm steel channel |
| Spring Leaf: 13mm(thickness)*10 layers | Suspension: 8mm(thickness) Mechanical suspension |
| Platform: 3mm-thick checkered plate | Landing Gear: JOST brand |
| King Pin: JOST brand 2.0 inch | Painting: Polyurethane paint |
| Brake Valve: WABCO | Light: LED light |

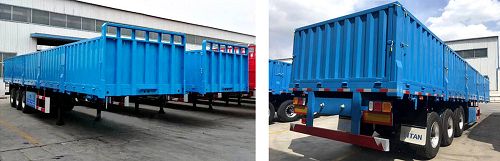

Produced in November 2019. The sidewall semi trailer is in stock at the factory, we can repaint the color for you according to your needs.
| Dimension(mm): 12500*2500*3200mm | Tool box: 1 set |
| Trailer sides: 800mm | Axles: 13 T Axle 16T braking system, TITAN Brand , 3 units |
| Loading capacity(ton): ≤60T | Tire: 12R22.5, 12 units |
| Material: Q345 steel | Rim: 900*22.5, 12units |
| Main beam height: 500mm 12mm X 6 mm X14 mm | Side beam: 16mm steel channel |
| Spring Leaf: 13mm(thickness)*10 layers | Suspension: 8mm(thickness) Mechanical suspension |
| Platform: 3mm-thick checkered plate | Landing Gear: JOST brand |
| King Pin: JOST brand 2.0 inch | Painting: Polyurethane paint |
| Brake Valve: WABCO | Light: LED light |

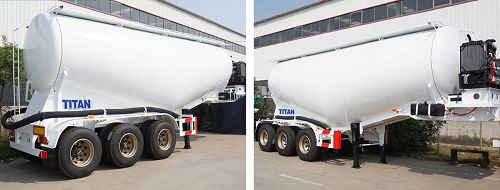

Produced in December 2019. The cement tanker trailer is in stock at the factory, we can repaint the color for you according to your needs.
| Dimension(mm): 9000*2500*4000mm | Main beams: Welded design, Q345 carbon steel |
| Tare Weight: About 8.4T | Axles: 13 T Axle 16T braking system, TITAN Brand , 3 units |
| Loading capacity(ton): 35tons | Tire: 12R22.5, 12 units |
| Shape: V-shape silo design | Rim: 900*22.5, 12units |
| Total volume(m³): 35cbm | King Pin: JOST brand 2.0 inch |
| Discharging Pipe: 4 inch rubber hose, 6m, 1pcs | Suspension: 8mm(thickness) Mechanical suspension |
| Diesel Engine: Weichai 4102 | Spring Leaf: 13mm(thickness)*10 layers |
| Compressor: BOHAI 12m³ | Landing Gear: JOST brand |
| Manhole Cover: 2 units | Painting: Polyurethane paint |
| Brake Valve: WABCO |
Light: LED light |
