4 Axle Container Chassis Trailer

Container Chassis Trailer

4 Axle Container Chassis Trailer:

Container chassis trailer is the more commonly used type of semi-trailer. When the container is in the transportation process, it only needs to be reloaded instead of inverted, which simplifies the loading, unloading and handling operations to a great extent, and facilitates the realization of mechanized loading, unloading and loading and unloading. It usually takes only a few minutes to replace a container, which reduces the waiting time for loading and unloading, improves labor productivity, speeds up the turnover of goods and transportation, and reduces cargo damage and cargo balance.

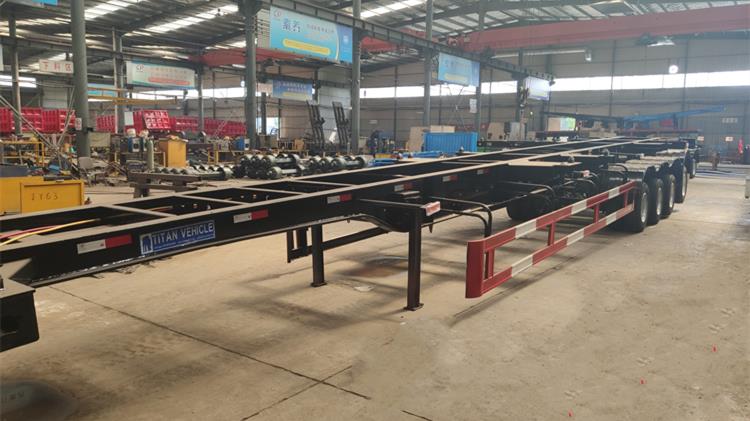

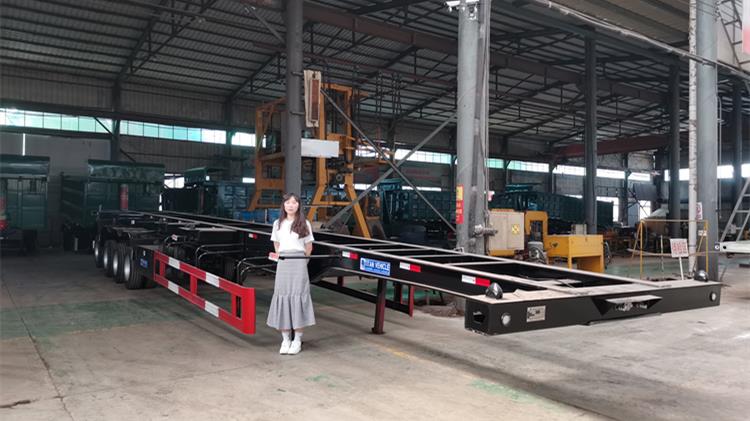

TITAN 4 Axle Container Chassis Trailer

Specifications:

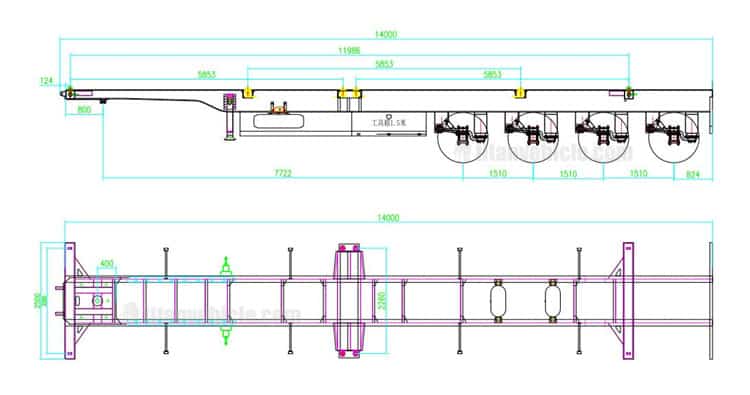

Dimension(mm): 14000*2500*1550mm

Axles: 4 axles, 13T, TITAN Brand

Tire: 16 units, 12.00R22.5

Rim: 9.00-22.5

Suspension: Mechanical Suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 inch bolted

Landing Gear: JOST 28tons

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm

Material:Q345B steel

Twist Locks:12 sets

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1 tool box+ 2 spare wheel carrier

Advantage:

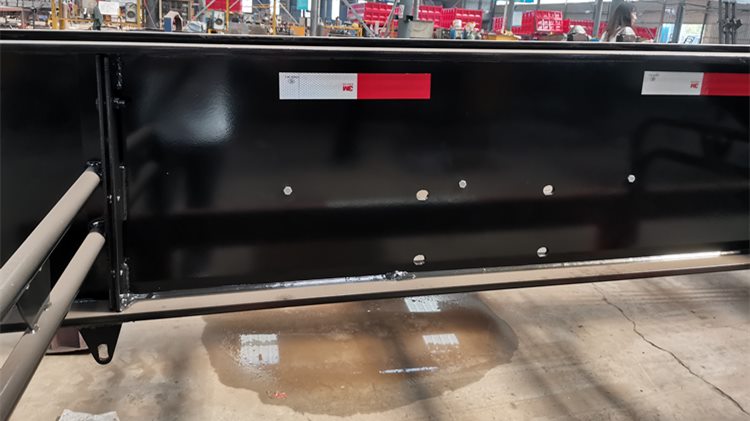

Titan uses automatic submerged arc welding process to weld beams, so that there is no interface between the upper, middle and lower plates of the beams, which can ensure the integrity of the beams, thus making the beams more durable.

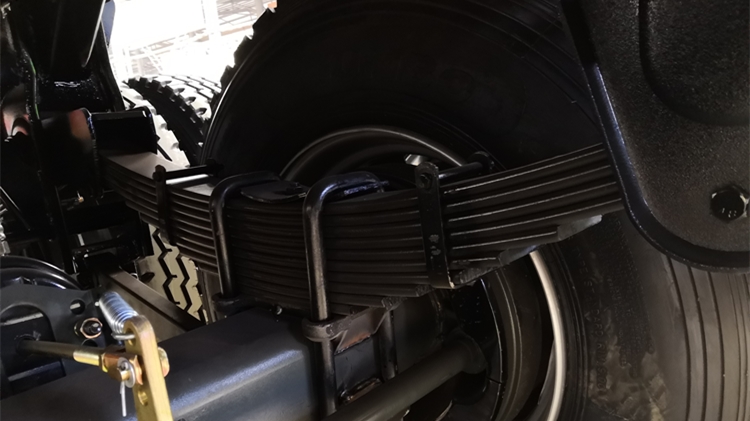

Titan use 10 pcs springs, the thickness of every spring is 13 mm, other suppliers just use 4 pcs springs. And the thickness is 9 mm.

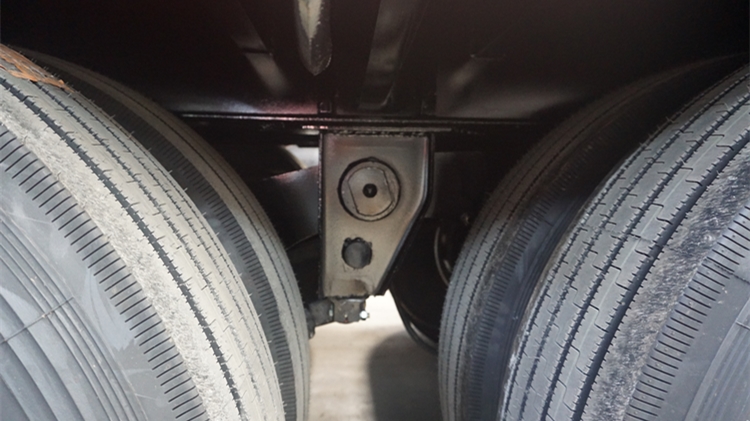

Reinforced suspension, 70 mm center balance pin. For some other factories, they use the light type suspension, the center pin is 45 mm only, will make a short service life. The suspension vertical bars are lengthened, which can effectively prevent the suspension from welding and cracking, and increase the strength; and the suspension is reinforced at the front and rear, left and right. (A separate road condition for Africa is involved, which can meet dirt roads and bad road conditions)

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
