TITAN 20ft 40ft container side loader trailer with superior lifter Capacity and Cost-effective container lifting and transport equipment. We offer 40ft container side loader to meet all container handling needs, to transport the 20 foot, 40-foot container.
TITAN Container side loader has made work flexible, Saves time and improves productivity for satisfied customers around the world. TITAN Produces container side loader trailer for lifting and transporting containers. And we adopt reliable, effective and safe technology.
For the frame structure, the welding constructions with high resistant steel And TITAN container transportation side loader semi trailers adopt advanced design concepts.

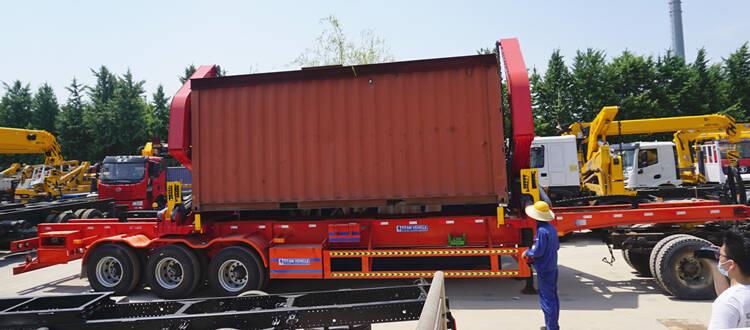

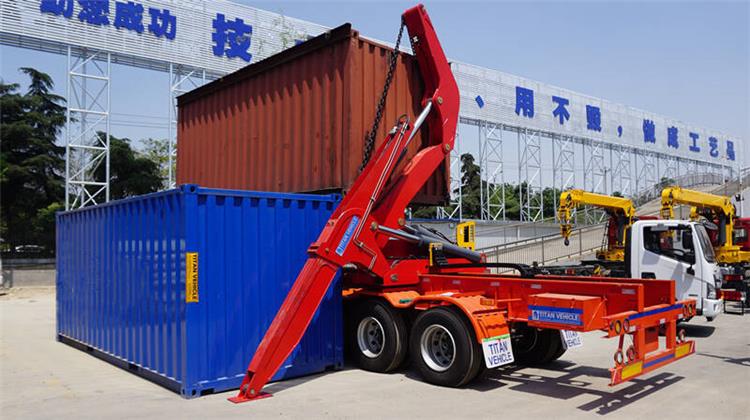

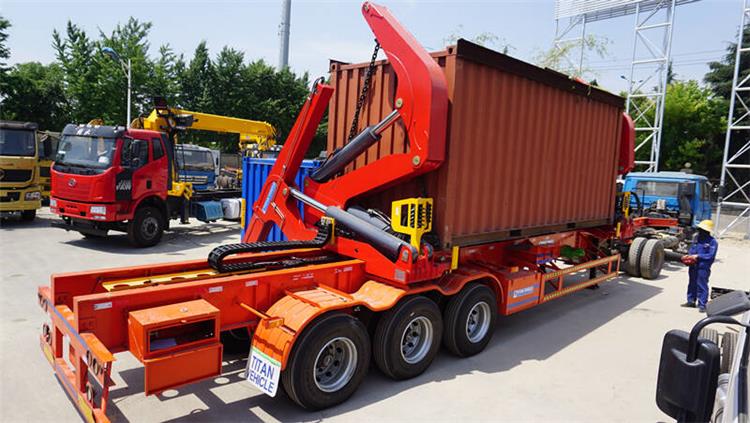

TITAN 37 Ton 40FT Sider Loader Truck Trailer
Crane:
Crane brand: XCMG Crane
Max.lifting capacity: 37 Ton
Max.stabilizer outreach: 3500mm
Max.working range: 4200mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Trailer Chassis

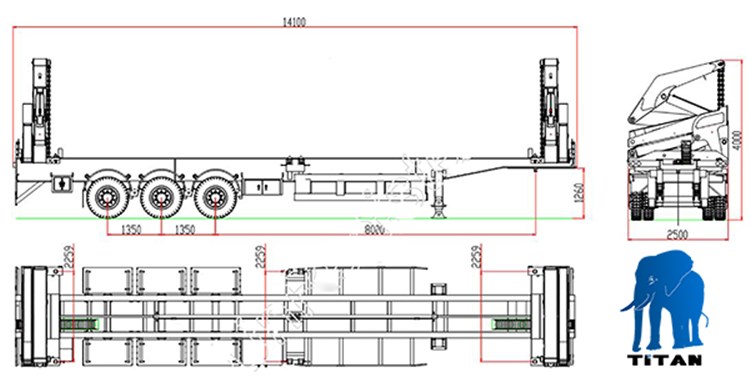

Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle*13 ton
Tire: 12 pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
King pin: 3.5 inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: Igus (imported)
Hydraulic System
Power source: Power take off
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Electric control system
Remote Control: NBB Germany
Reinforced Beams
Wireless remote controller
Professional package

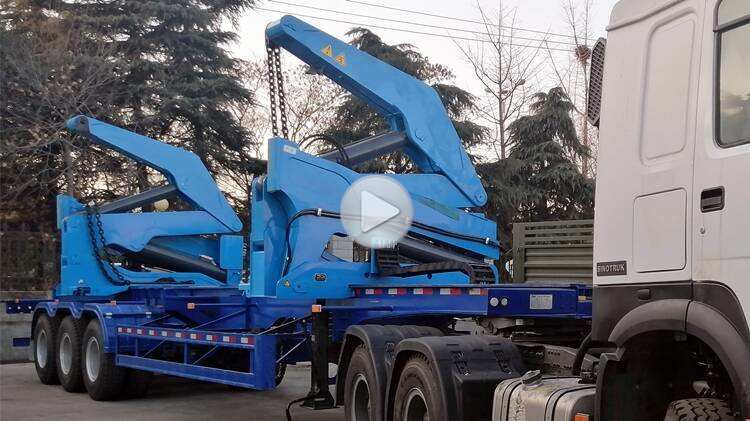

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
Welcome to click " TITAN side lifter trailer " to get more videos on Youtube.
