150 Ton Detachable Gooseneck Lowboy Trailer

Lowboy Trailer

4 Axle 150 Ton Detachble Gooseneck Lowboy Trailer:

The detachable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the semi trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the detachable gooseneck trailer.

TITAN 4 Axle 150 Ton Detachble Gooseneck Lowboy Trailer--USD 32000

Specification:

Dimension: 17900*2500*2200mm

Loading capacity: 150 ton

Material: Q460C High strength steel

Main beam: Height: 500mm; Width: 230mm;

Side beam: 250 I-beam 10/8/10;

Working platform length: 7400mm

Working platform height: 800mm

Bottom platform: 5mm checked plate

Axle: 4 axles, 16 ton with 2 axles dolly TITAN

Tire: 12R22.5, 16 units;

Gooseneck: Hydraulic detachable gooseneck

Power pack:12KW disesel engine with Hydraulic station

Suspension: Mechanical leaf spring suspension

King pin: 3.5 inch bolted type

Braking system: WABCO emergency brake valve

Color: Optional

Advantage:

Detachable gooseneck

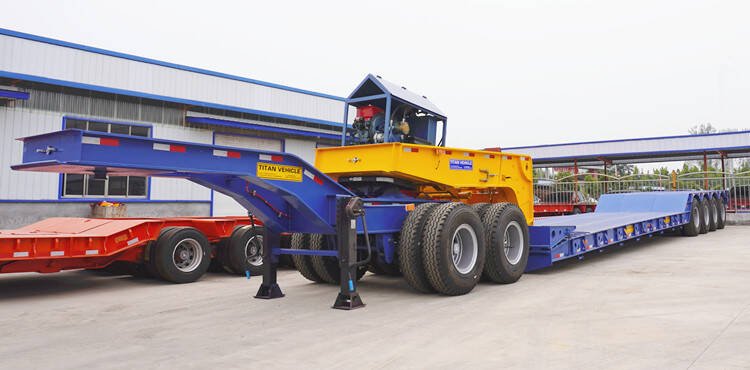

Detachable part's detail

Side beam

Professional package

Through the video, you can know different types of detachable gooseneck trailer , 3 axle detachable gooseneck trailer for sale , hydraulic detachable gooseneck, etc.
