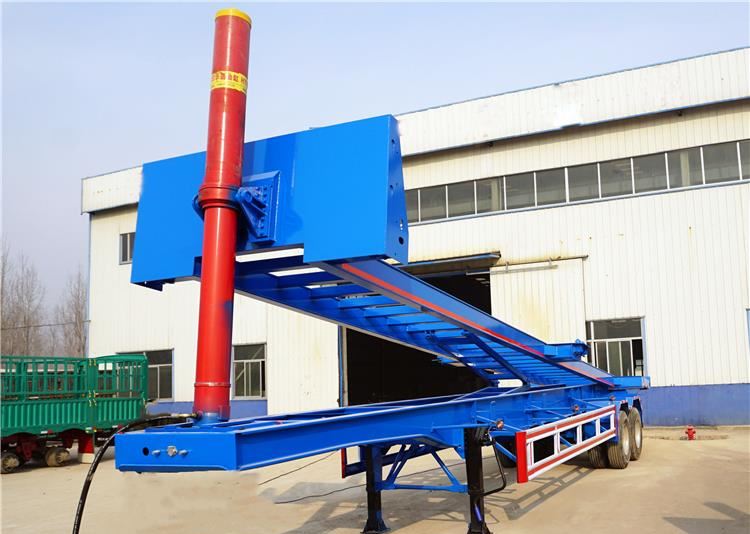

The container tipper chassis trailer comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.

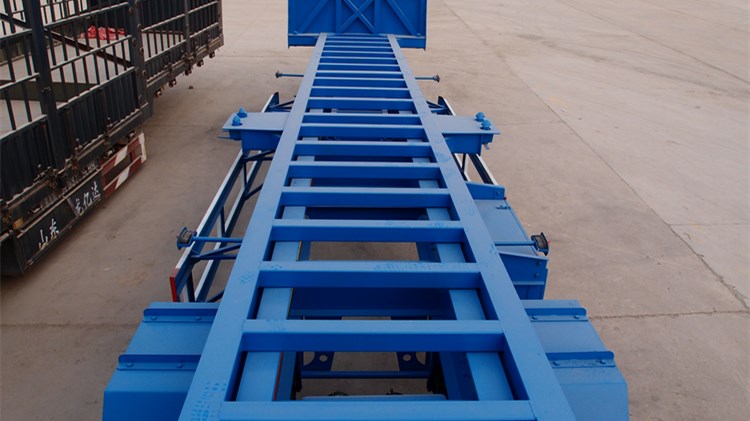

TITAN adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. Main parts, especially the stress point, we'll adopt the reinforced design. The strength of our TITAN skeleton trailers is our reinforced main beam.
The tipping chassis trailer could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. This type of trailer could be used for nearly 10 years.

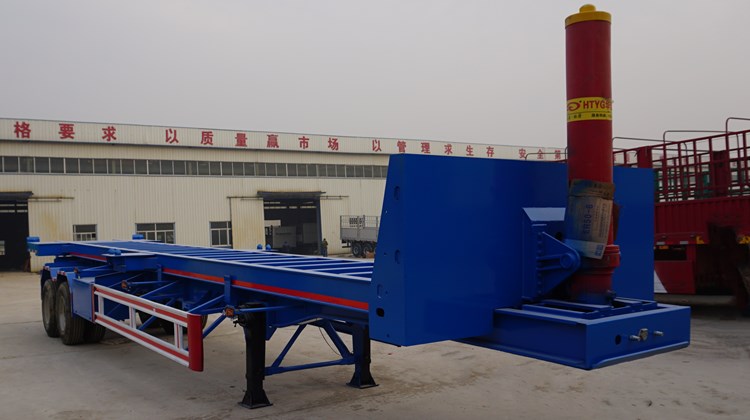

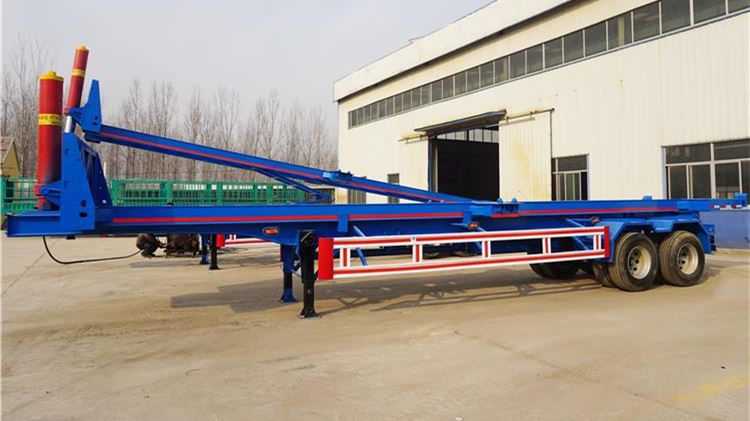

TITAN 2 Axle Tipper Chassis Trailer
Overall dimension：13000mm * 2500mm *2900mm
Axles：2 axles, 13 ton; 16 ton brake lining
Material: T700 hifh strength steel
Main beam: middle:480mm high, 8mm thick; Upper: 14mm thick; Bottom:14mm thick
Side beam: 6+6mm high strength steel
Hydraulic cylinder: Titan 196 hydraulic cylinder
Suspension：Heavy duty mechanical suspension
Spring: 10 pcs, 13mm thick spring
Tire：8 units, 12R22.5
Landing gear：TITAN 28 tons
Brake system: WABCO emergency relay valve
Twist locks: 8 sets
Electrical system: 24V, LED lights
Color: Optional

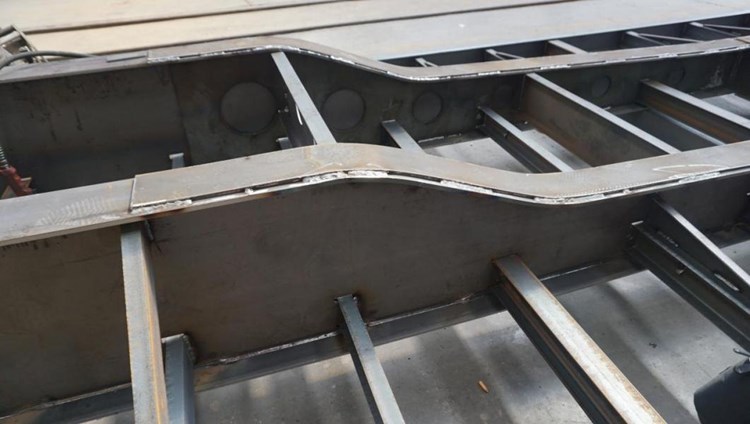

Gooseneck double-layer beam vertical plate

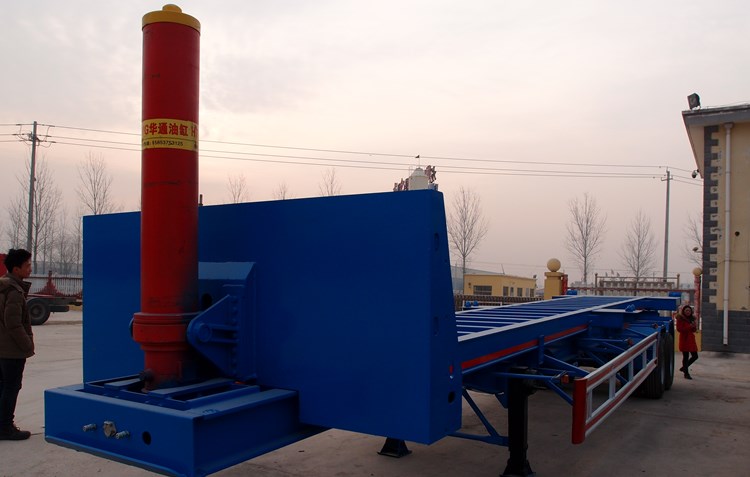

Titan 196 hydraulic cylinder

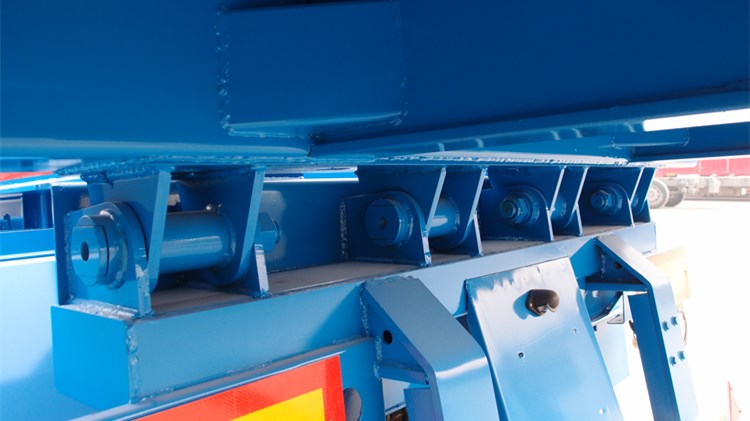

Heavy duty flip brackets

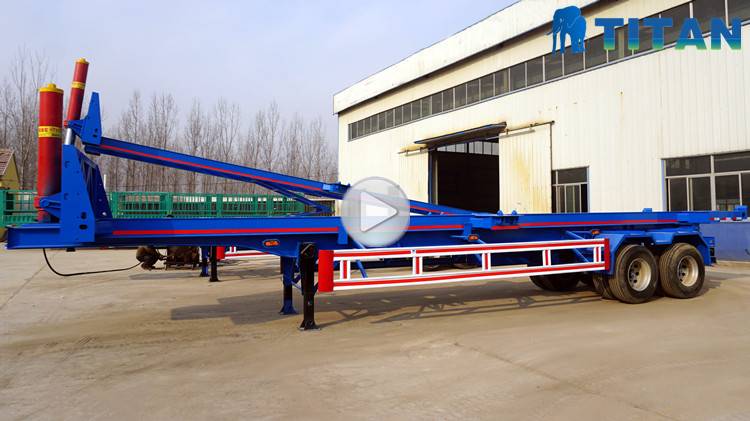

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
Please click " TITAN Container Skeleton Trailer" to get detailed video!
